Setting up your IntelliDose with Edenic

How to set up your Bluelab IntelliDose with Edeinc via your Bluelab IntelliLink

ORDER OF SETTING UP A NEW CONTROLLER

1. Download the Edenic app on your mobile device, create an account & log in.
2. Onboard your Bluelab IntelliLink to Edenic.
3. Plug your Bluelab IntelliDose into the Bluelab IntelliLink via the USB cable provided.
4. In Edenic select your IntelliDose and navigate to Device Settings via the settings cog.
5. Navigate through each Settings Tab, submitting any changes, to configure the controller to match the physical equipment to be installed.
   Settings Tabs:
   1. 1. Device Settings
      2. pH Settings
      3. EC Settings
      4. Temperature Settings
      5. Dosing
      6. Irrigation Settings

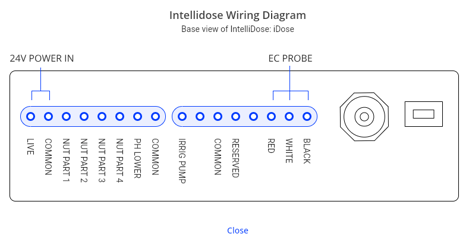

6. Select "View Wiring Diagram" to correctly wire in the equipment according to your chosen configuration.
7. At the controller, clean the EC probe .
8. At the controller calibrate both EC (TDS) and pH.
9. In Edenic navigate to the Control tab in Device Summary to enable all functions that you wish to use, or alternatively enable required functions on the controller.
10. Check the time/date on the controller is correct.



Additional Information:

• Getting Started: The Bluelab IntelliLink
• Configuration
• Dose times
• History Reports
